YZ Series Land Based Diesel Generators-Closed Type High Performance

Name: YZ Series Land Based Diesel GeneratorsClosed Type High Performance
Brand: Weichai
Price: 100 USD

Place of Origin : China

Brand Name : Weichai

MOQ : 1piece

Price : USD+100-100000+1 piece

Packaging Details : Unpacked or in wooden cases for export according to the products

Delivery Time : 7-30days

Payment Terms : L/C ，D/P , T/T ，Western Union ，MoneyGram ，Paypal

Supply Ability : 100 pieces per 30days

Name : Weichai Generator Sets

Feature : High reliability, low emissions, low noise

Key selling points : high performance

　Emission standards : State IV

Cooling Method : Closed Fan-radiator Cooling

Speed Governor : ECU

Speed : 1500r/min

No. of Cylinder : 4/6

Contact Now

YZ Series Land Based Diesel Generators-Closed Type High Performance

MODEL	STANDBY POWER		PRIME POWER		FUEL CONSUMPTION@75% LOAD	ENGINE
	STANDBY POWER		PRIME POWER		FUEL CONSUMPTION@75% LOAD	MODEL	RATED Power	DISPLACEMENT	GOVERNOR
	KVA	KW	KVA	KW	L/h	MODEL	KW	L	GOVERNOR
WPG17L1^	17	14	15	12	3	WP2.3D20E200	18	2.3	Elec
WPG22L1^	22	18	20	16	4	WP2.3D25E200	23	2.3	Elec
WPG28L1^	28	22	25	20	5	WP2.3D33E200	30	2.3	Elec
WPG33L1^	33	26	30	24	5	WP2.3D33E200	30	2.3	Elec
WPG38L1	38	30	35	28	6	WP2.3D40E200	36	2.3	Elec
WPG44L1	44	35	40	32	7	WP2.3D48E200	44	2.3	Elec
WPG55L1	55	44	50	40	8	WP2.3D53E200	48	2.3	ECU

Widely used in telecommunications, oil, public buildings, community, industrial and mining enterprises, hotels, hospitals and other fields.

Low noise, the noise level can reach 80dB (A) @ 1m or less;

Power reserve, and has good technical performance indicators;

DC12V electrical system;

High temperatures and rotating parts complete protection;

High-performance shock absorbers and 40 ℃ hot tank;

Spray Public chassis;

Rated power: 12KW-32KW

Rated voltage: 400V;

Rated speed / rated frequency: 1500rpm/50Hz;

Rated power factor: 0.8 (lagging);

Number of cylinders / Bore / Stroke: 4/89mm/92mm;

Displacement: 2.3L

Cooling: Closed radiator fan forced cooling;

Start mode: DC12V electric motor;

Phase number and connection: three-phase four-wire, star connection;

Excitation / regulator: Brushless / AVR automatically;

Diesel fuel consumption economy: ≤ 210g/kW · h;

Oil consumption: ≤ 1.1g/kW · h;

Buy cheap YZ Series Land Based Diesel Generators-Closed Type High Performance product

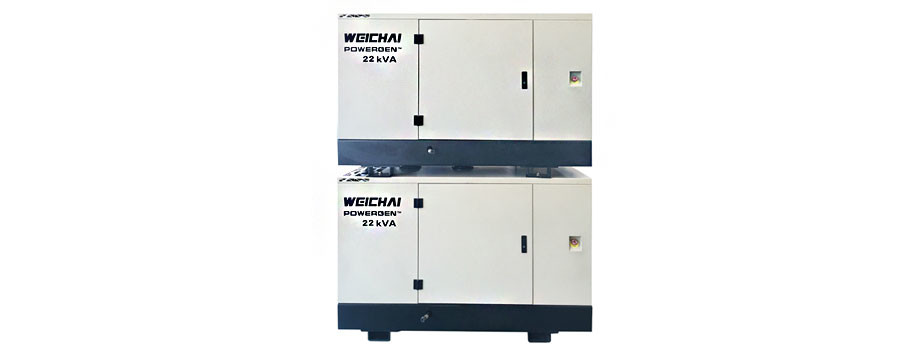

YZ Series Land Based Diesel Generators-Closed Type High Performance Images
